Variables
Models
3 variants
for different needs.
Model | Illuminated Area (Width × Depth) |
A-22 | 220 × 220 mm |
A-30 | 300 × 300 mm |
A-45 | 450 × 450 mm |

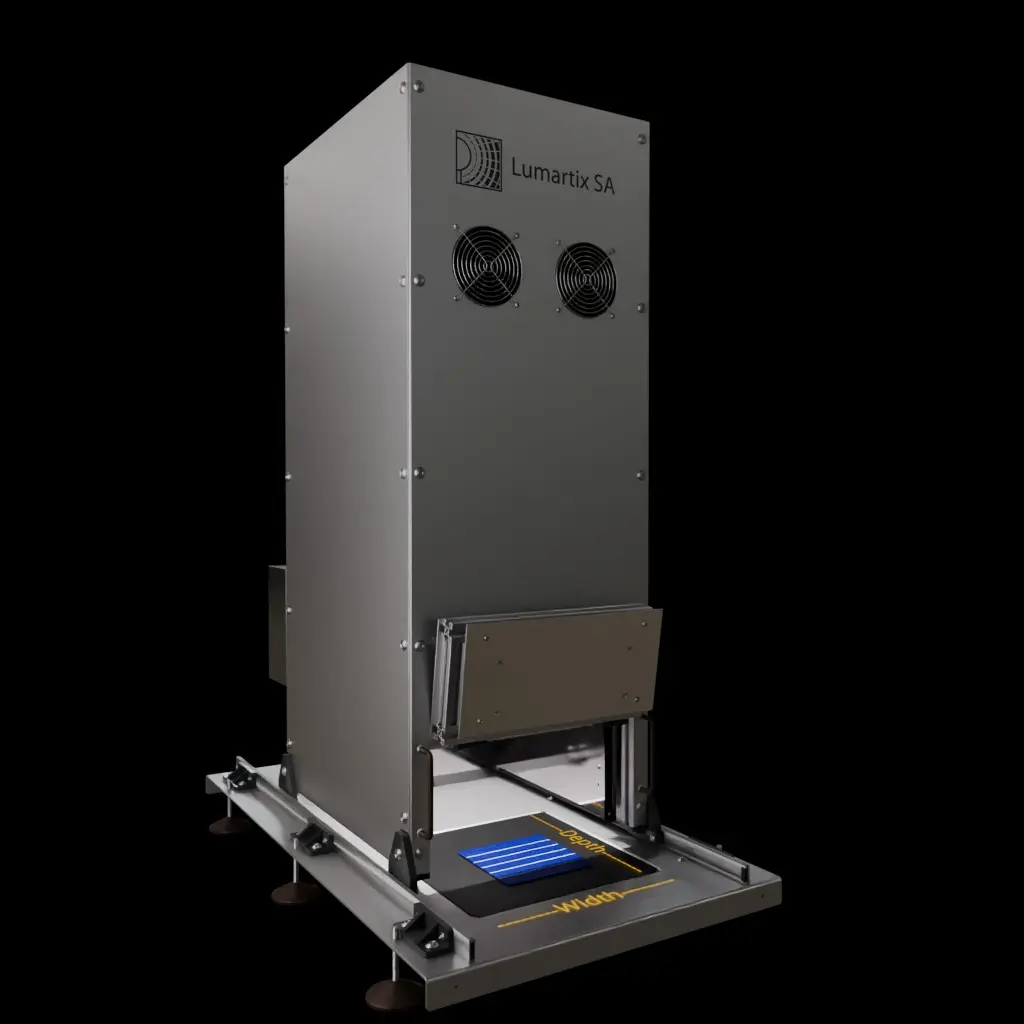

Features
Compact
design.
Board Width* | 474 mm |
Board Length* | 850 mm |
Simulator Height* | 1235 mm |
Illuminated Area* | 220 × 220 mm |
*for A-30 model
Convenient
rail-mounted, movable simulator.
Simulator Weight* | 25 kg |
Door Width* | 346 mm |
Door Height* | 192 mm |
*for A-30 model
Adjustable
light intensity.
Minimum Light Intensity | 50 W/m² |
Maximum Light Intensity | 1300 W/m² |

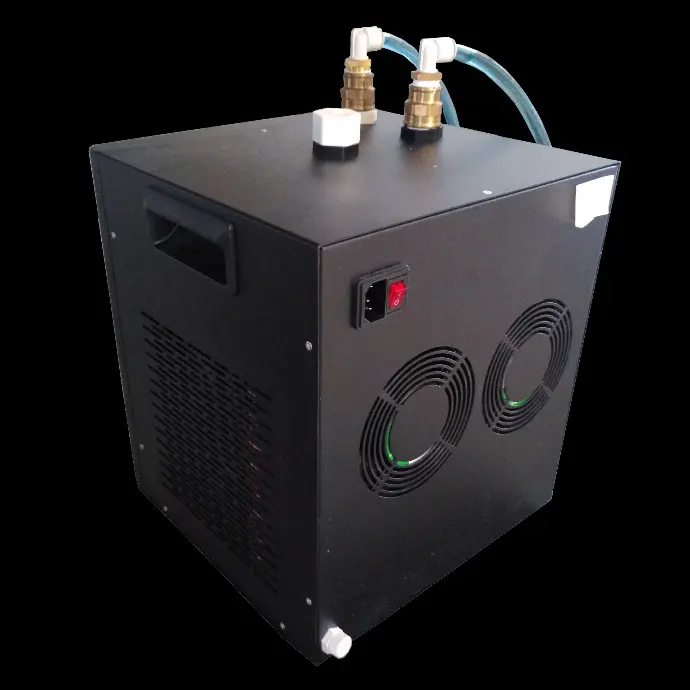

Water cooling
sample holder with adjustable temperature. It cancels the heating effect of the plasma lamp.
Minimum Temperature | 20 °C |
Maximum Temperature | 60 °C |

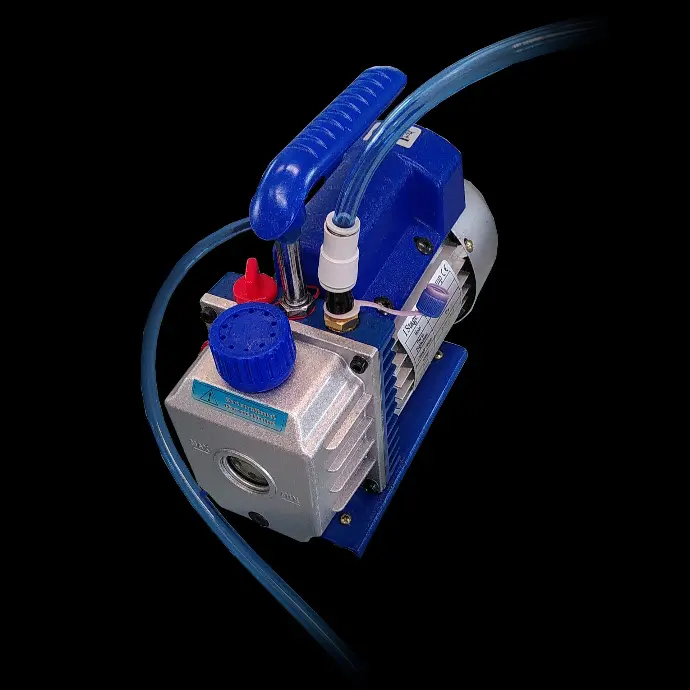

Vacuum holding
system.
Ensures conduction between your the sample and the cold surface.
Performant
lights.
Irradiance Instability | < 2% (Class A) |

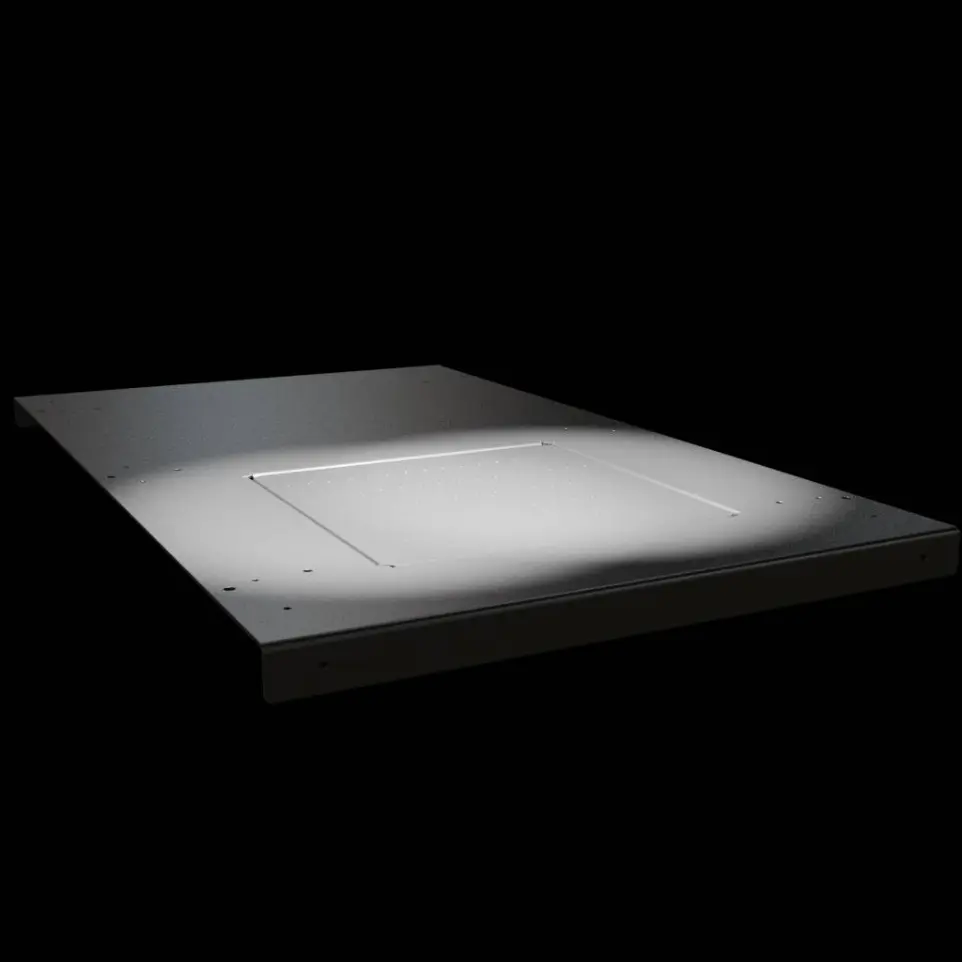

Illumination Uniformity | ±1% (Class A) |
Sun Spectrum (AM 1.5) | Class A+ or Class A |
Monitoring
sensors in real-time.
Light Intensity Sensor |
Lamp Temperature Sensor |
Light Engine Temperature Sensor |
Resilient
algorithm.
Turns the system off when overheating. Reports and logs anomalies, and deterioration.
Healthy
materials and technology.

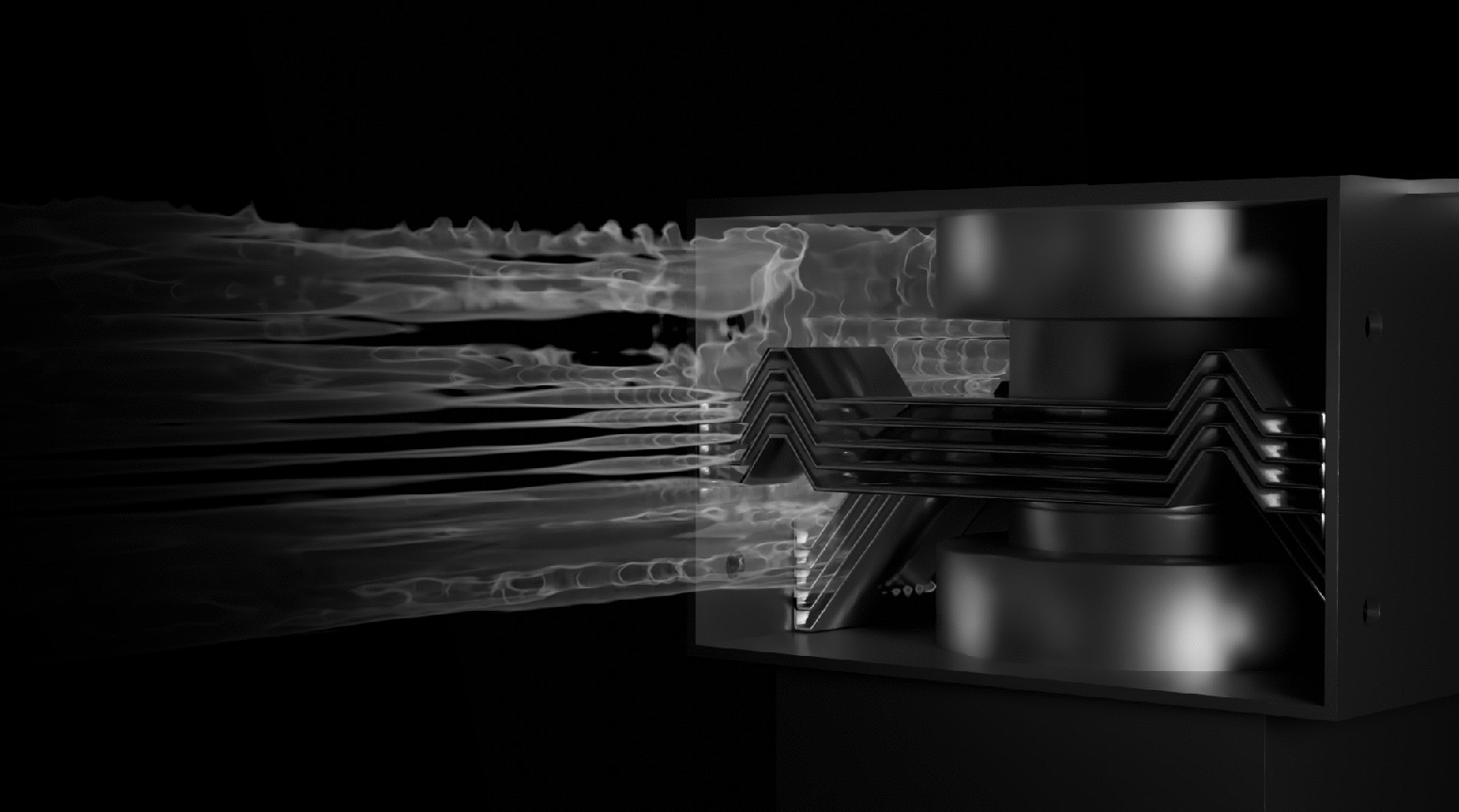

Light Engine Cooling | Forced air |
Structure | Anodized aluminium |
RoHS | Conform |
CE | Conform |
Compliant
with industry tests.
| Maximum power determination (MPP) | IEC 61215-2 (MQT 02) |
Measurement of temperature coefficient | IEC 61215-2 (MQT 04) |
Performance at STC | IEC 61215-2 (MQT 06) |
Performance at low irradiance* | IEC 61215-2 (MQT 07) |
Light soaking test | IEC 61215-2 norm |
Stabilization norm | IEC 61215-2 (MQT 19.1 and MQT 19.2) |
*with neutral filter option
