Variables
Models
6 variants
for different needs.

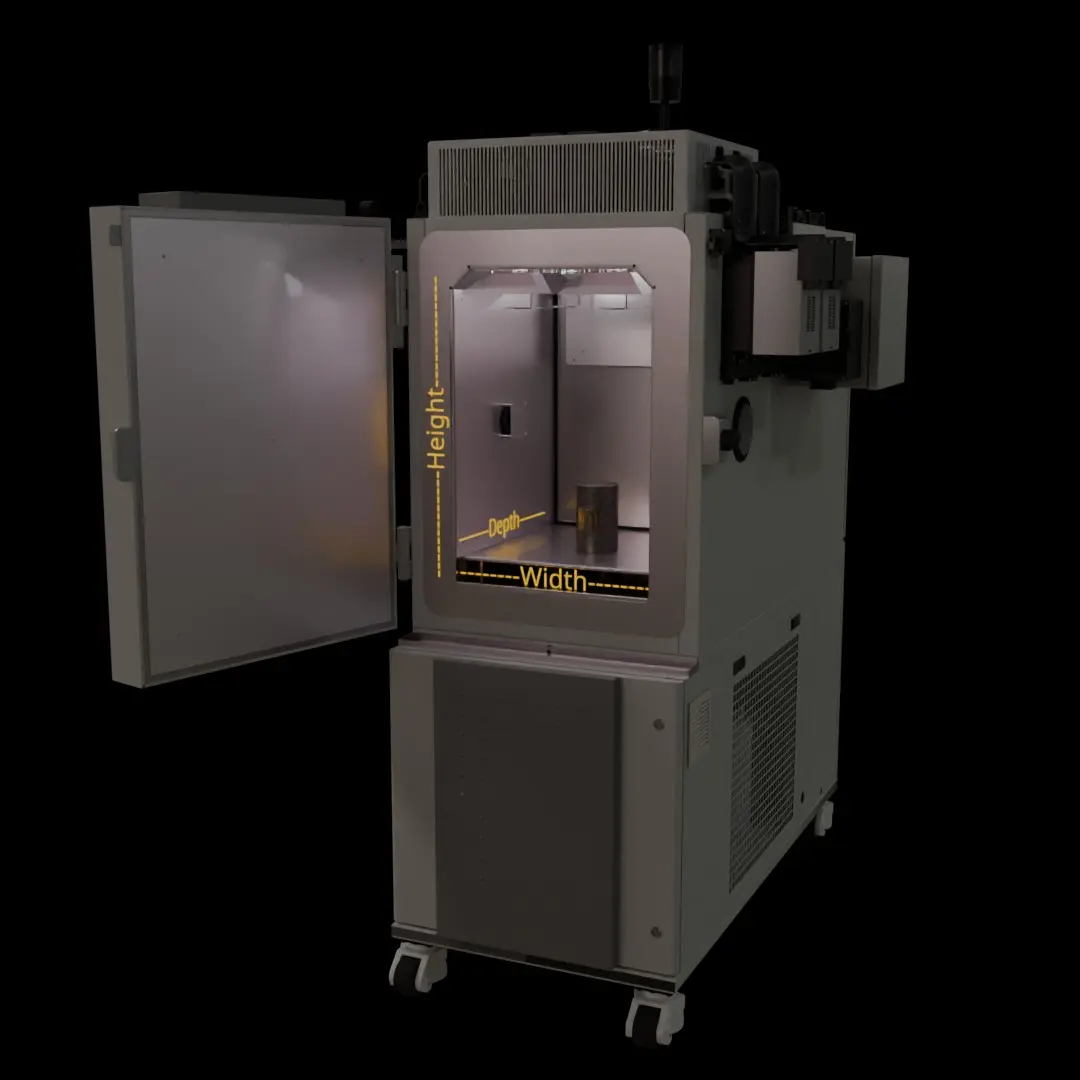

Model | Test Space (Width × Depth × Height) | Volume |
| PAC-120 | 500 × 400 × 600 mm | 120 L |
PAC-225 | 500 × 600 × 750 mm | 225 L |
PAC-380 | 600 × 740 × 840 mm | 380 L |
PAC-540 | 750 × 800 × 900 mm | 540 L |
PAC-1000 | 1000 × 1000 × 1000 mm | 1000 L |
PAC-1500 | 1000 × 1500 × 1000 mm | 1500 L |
Features
Flexible heating
ramp rates.
3, 5, 6, 7, 8, 10, 12, 15, or 20 °C/min
(as per IEC 60068-3-5).
Controlled moisture
in the air inside the chamber.
Minimum Relative Humidity | 10 % (very dry) |
Maximum Relative Humidity | 98 % (nearly saturated) |
Extreme range
of temperatures.
Cooling mode | Minimum Temperature | Maximum Temperature |
Single stage | -40ºC | +180ºC |
Cascade stage | -70ºC | +180ºC |
Convenient
design.
Equipped with a large opening door, to access the test space.
Movable
wheel-mounted machine.
The wheels are equipped with extendable feet to stabilize and level the machine.

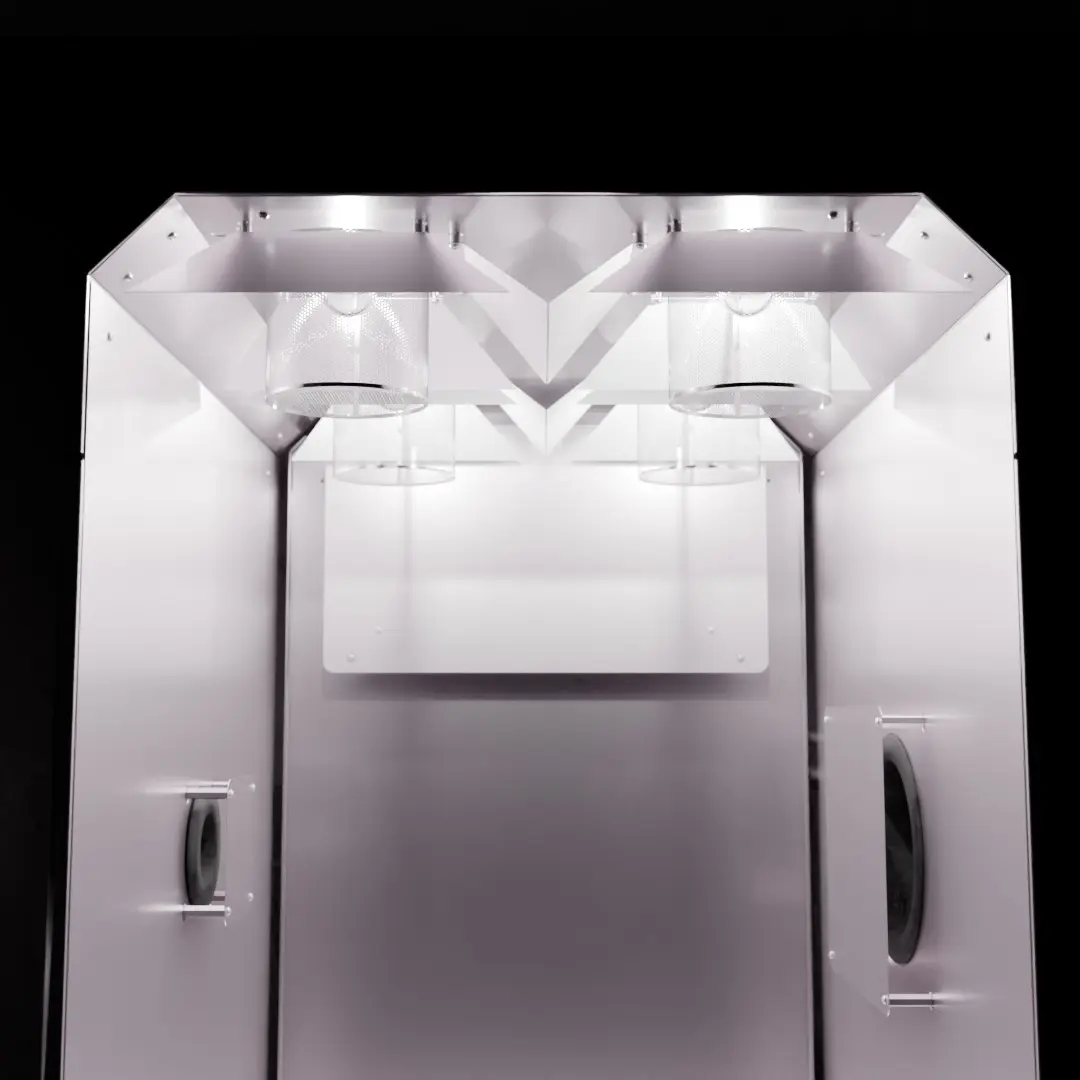

Adjustable light
intensity.
Minimum Light Intensity | 50 W/m² |
Maximum Light Intensity | 1300 W/m² |
Performant
lights.
Irradiance Instability | < 2% (Class A) |
Illumination Uniformity | ±1% (Class A) |
Sun Spectrum (AM 1.5) | Class A+ or Class A |
Resilient
algorithm.
Turns the system off when overheating. Reports and logs anomalies, and deterioration.
Healthy
materials and technology.
Light Engine Cooling | Forced air |
Structure | Anodized aluminium |
RoHS | Conform |
CE | Conform |
Options
Product brochure
Download the product brochure
